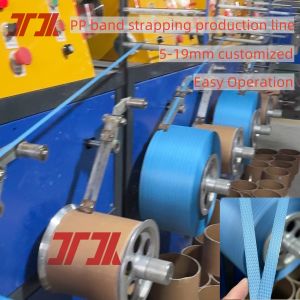

5-19mm Width PP Plastic Strapping Making Machine With Eco-Friendly
Strap And 0.3mm Width Small Tolerance
Polypropylene Strapping Band Production Line of Application
This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes,
fruit,electrical (such as refrigerators, washing machines, color
TV), food and other industries.
It can produce different width and thickness pp straps according to the
requirement of the clients.
It can using the 100% recycled material or mixed the new and recycled material
together, which can reduce the product cost and get a good profit.
PP strapping making machine of Advantages
1. Smart PLC Control System
Automatically stores last-used parameters for quick setup
Ensures consistent production quality
2. Superior Tensile Strength
5mm width × 0.45mm thickness strap achieves 50kg pull force
Exceeds industry performance standards
3.High-Temperature Resistant Design
Maintains stable operation in demanding environments
4.Energy-Efficient Operation
Low power consumption reduces operating costs
Automated processes minimize labor requirements
5.Premium Quality at Competitive Pricing
Robust construction for long service life
Cost-effective manufacturing solution
6.High-Capacity Production
Stable output of approximately 6 tons per 24 hours
Consistent performance for continuous operation
7.Precision Manufacturing
Width and thickness tolerances surpass industry standards
Ensures uniform product quality
Machine and Product Introduction
Machine name | Polypropylene strapping band production line |
Certification | ISO9001/CE |
Raw material | PP granules /100% recycled materials |
Output | 250kg-600kg/H |
Product width | 5-19mm |
Product length | According to customer's requests |
Machine size | Length (36m)*width (2m)*height (4m) |
Contactor | Schneider |
Inverter | Invt |
Temperature controller | Fotek |
Motor | Gugao |
The parts of PP strap making machine
1.Mainframe part
Die head:According to the machine to use fixed mould or adjustment mould which can make 5-19mm width, for example: 4 output straps making machine can be used to
produce 4 moulds with embryo straps at the same time. we have 1/2/4/6/8/12 straps output in the same time, depend on the capacity you need.
2.Cooling tank: cool down the embryo straps(The best temperature makes 20 degrees
below )
3.Stretching part: Instantly extends the embryo straps to 10-12 times its lengt,then
it undergoes a second stretching to make the packing straps shape
with uniform width and thickness
4.Shaping part: Re-shaping to reduce the probability of deformation after winding
5.Winder: rewinding the strapping produced by the machine, can be choose semi-automatic winder and fully automatic winder.
Paper core specification:200 mm X180 mm(can Customized)
Winding specifications:5-19mm
PP strapping finished products
Certifications:
Shenzhen Jiatuo Plastic Machinery Co., Ltd. is a privately-owned enterprise specializing in manufacturing
high-end intelligent PP/PET strap making machine and other
packaging industry zone, our company was founded in 2012 and has
the most advanced computer numerical control machine tools and
machining centers, we have passed the ISO9001 quality management
system certification and our machines have passed environmental
protection testing certification, using the an exclusive memory
system.
Packing & Delivery
FAQ
Q: What about the payment terms?
----Always 30% down payment as deposit,70% balance payment after
inspection before shipping.
Q: What is your guarantee time?
----Our guarantee time is 12 months.
Q: If you will send engineer coming to our factory to install and
test the machines?
----Yes,Every set of machine we will send professional engineer to
your factory and help installation and test the machines for you.
Q: If you have CE,SGS,ISO certificate?
----Yes,except these,if you also need other certificates,we also
can help to apply.
