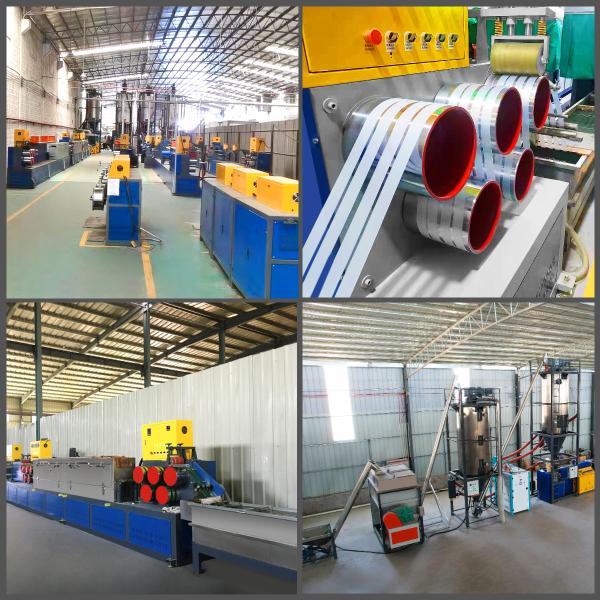

Packaging Machinery PET Plastic Strapping PET Strapping Machine
with 9-32mm Width
PRODUCT DESCRIPTION
1. Good tensile strength----PET strapping tape production line has the tensile strength of
steel tape, good ductility, good impact resistance, not easy to
break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping tape is a kind of plastic, its elongation
changes very little, and its elongation is only 1/6 of
polypropylene. It can maintain tension and make the expansion and
contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping
tape is about 260℃, and it can be used for a long time at 120℃
without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping tape is 1.30~1.38g/cm3, which is only
1/6 of the density of steel tape (7.8g/cm3), equivalent to the
length of 6-ton steel tape, and the price per unit length is
relatively low.
PET Strap Production Line Machine List
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity | PETJT90: 200-230kg/h PETJT100: 300-330kg/h PETJT110 :400-430kg/h |
| 4 | Product size | Width:9-32mm Thickness:0.6-12mm |
| 6 | Mid-height of extruder | 7000mm |
| 7 | Installation power | PETJT90:200KW PETJT100:250KW PETJT125:300KW |
| 8 | Humidity | <85% |
| 9 | Temperature | 0-40 degree |
| 10 | Cooling tower capacity | 30T/H or 50T/H |
| 11 | Installation Dimensions | PETJT90: 50*2.0*7.0M PETJT100:52*2.0*7.0M PETJT125:55*3.0*8.0M |
| 12 | Product color | Green/Black/Pink/Yellow |
Features of PET packing strap production line:
Feature 1:
• Raw material process and extrusion system.
• High performance crystallizing and drying system.
• Production can use 100% recycled material to obtain a high add value strapping band.
• Special designed PET screw, select of single or twin screw
extruder.
Feature 2:
• Continuous back-flush screen changer operating technology (Europe
technology).
• 100% full automatic self-cleaning screen changer.
• Double column 4 screen cavities.
• PLC control, change screen without production interrupted, not
influence the production quality.
Feature 3:
• Special designed hot air stretching oven.
• Configured with heating unit and automatic temperature control
system.
• High performance heat insulating layer.
• Better on strip stretching and heating, rapid heating, complete
strip orientation stretching.
Feature 4:
• Embossing machine, Hydraulic control.
• Customization designed embossing roll pattern available.
• Configured with synchronous control system, adjust embossing roll
vertical position and embossing strength accurately.
Feature 5:
• Heating oven for sizing
• Special designed technology, make sure the strip forming rapidly
• Prevent the strip from un-orientation after orientation,
eliminate internal stress, make sure the quality and size accuracy
of strip.
Feature 6:
• Strapping accumulator unit.
• Strap length and the winding tension can be controlled according
to strap wind speed.
• Two times completely cooling strapping.
• Reduce strapping winding camber.
Feature 7:
• Servo control winder (Single position and double position
optional).
• PLC control system, automatically adjust winding tension.
• Winding range from 5mm to 32mm.
• Servo motor controls winder displacement width and distance.
• Reduce the strap bending, make sure the strap is fit for
automatic packaging equipment.
DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery:
PET Strap Production Line consists of dehumidifying and
crystallizing system, extruder, screen changer, mold, oven,
haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold →
Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and
Stretching →Drawing and Stretching → Embossing →Hot Forming →
Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various
specifications of PET strap. It has been widely used in steel,
chemical industry, aluminum, paper making, brick kiln, tobacco,
electronics and textile and timber industries.
